Quickship Products 07-2023

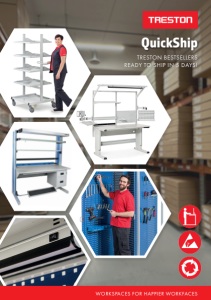

1 TRESTON - ERGONOMICS | ESD | LEANERGONOMICS | ESD | LEAN TRESTON BESTSELLERS READY TO SHIP IN 5 DAYS! QuickShip Products

2 TRESTON - ERGONOMICS | ESD | LEAN Cornerstone bench frames Size (D x W) Max load (lbs) Order No 30 x 48 (27.6” x 47.2”) 2000 CS712-49 30 x 60 (27.6” x 59.1”) 2000 CS715-49 30 x 72 (27.6” x 70.9”) 2000 CS718-49 Concept bench frames Size (D x W) Max load (lbs) Order No 30 x 48 (29.5” x 47.2”) 1100 10049031P 30 x 60 (29.5” x 59.1”) 1100 10049032P 30 x 72 (29.5” x 70.9”) 1100 10049033P Work surfaces Size (D x W) Laminate Order No ESD Laminate Order No Phenolic Order No 30 x 48 14-9684110 14-9703510 14-9781805 30 x 60 14-9684111 14-9703511 14-9781806 30 x 72 14-9684112 14-9703512 14-9781807 Treston Best-Sellers Ready to ship in just 5 days! • Choose from 2 frame styles: 4-leg or C-leg Manual • All frames are height adjustable with optional casters • Standard light grey ESD powder coated frames • Products ship unassembled from Treston’s warehouse in Canton, GA • See terms and conditions for complete program details While Treston offers a large selection of standard products aimed at creating customized solutions, we recognize the need for quick and easy ordering of our most popular items. The goal of Treston’s QuickShip program is to simplify and upgrade workstations with quick and easy ordering and fast turn-around. QuickShip products come packaged in a single box with easy-to-follow assembly instructions and links to assembly videos. ESD Laminate • Grey laminate surface • Grey edges • Thickness 1 3/16 inches • Static-dissipative (ESD) Laminate • Light-grey, laminate surface • Grey edges • Thickness 1 3/16 inches Phenolic • Chemical and scratch resistant • Thickness of 3/4”

3 TRESTON - ERGONOMICS | ESD | LEAN Upright tube modules Module Size Order No. l =53.5” h =42.3” 1 x M48 (48”W single bay) US-9074901P 1 x M60 (60”W single bay) US-9074908P 1 x M72 (72”W single bay) US-9074909P 2 x M30 (60”W double bay) US-90349001P 2 x M36 (72”W double bay) US-90449001P Load capacity 220 lbs / module spacing. h = module’s height measured from bench’s top surface. Accessories are attached to Concept and Cornerstone benches with the aid of upright tubes or a complete, upright tube module. The module includes upright tubes, horizontal tube/tubes, corner bracket pair and straight bracket (if module has more than one horizontal tube). The tubes or the module are attached to the back of the bench. Upright tubes Horizontal tube Upright tube Straight bracket Corner bracket h= l= The modular (M) size refers to the distance between two upright tubes from the middle of the tube. The modular size is used to find the appropriate accessories. The upright tubes can also be used separately without the horizontal tubes. In this case, please order the end cap 90037000 for the upright tubes (1 pcs per upright tube). QUICKSHIP Uprights

4 TRESTON - ERGONOMICS | ESD | LEAN Tiltable Top Shelf with lip Module size W x D inches max lbs Order No M30 M30 x 11.81” 176 TTSM7503-49 M36 M36 x 11.81” 176 TTSM9003-49 M48 M48 x 11.81” 176 TTSM12003-49 M60 M60 x 11.81” 176 TTSM15003-49 M72 M72 x 11.81” 176 TTSM18003-49 M30 M30 x 15.75” 176 TTSM7504-49 M36 M36 x 15.75” 176 TTSM9004-49 M48 M48 x 15.75” 176 TTSM12004-49 M60 M60 x 15.75” 176 TTSM15004-49 M72 M72 x 15.75” 176 TTSM18004-49 LED Lighting (includes 10ft power cord) Description Size Order No 24” Dual Intensity LED, balancer rail 22.44” x 1.26” x 1.81” 14-95035171 36” Dual Intensity LED, balancer rail 33.46” x 1.26” x 1.81” 14-95035172 48” Dual Intensity LED, balancer rail 44.48” x 1.26” x 1.81” 14-95035173 24” Dual Intensity LED, magnetic 22.44” x 1.26” x 1.81” 14-95035174 36” Dual Intensity LED, magnetic 33.46” x 1.26” x 1.81” 14-95035175 48” Dual Intensity LED, magnetic 44.48” x 1.26” x 1.81” 14-95035176 Light/balancer rail (includes sliding piece) Module Width Max lbs Order No M48 47.24” 33 US-91849010P M60 59.05” 33 US-91849006P M72 70.86” 33 US-91849008P Well-chosen accessories optimize workstation functionality and increase usability. When a workstation is well-organized and well-equipped, workflow becomes easier and more efficient, improving ergonomics and making it easier to keep tools in place. Below are some of Treston’s in-stock and ready to ship accessories! Workstation Accessories Divider hoops set (4 pcs) Suitable for Size D x H inches Order No Tiltable top shelf TTS depth 11.8" 11.8" x 15.7" PDH300-49 Tiltable top shelf TTS depth 15.7" 15.7" x 15.7" PDH400-49 QUICKSHIP Workstation Accessories

5 TRESTON - ERGONOMICS | ESD | LEAN Steel shelf, with lip, 0º or 20º angle Module size W x D inches max lbs Order No M30 28.34 x 11.81 110 US-836028-49 M36 34.25 x 11.81 110 US-852283-49 Bin rails (bins sold separately) module W x H inches max lbs Order No M30 29.21 x 3.54 110 US-859151-49 M36 35.23 x 3.54 110 US-859152-49 M48 47.04 x 3.54 110 US-859157-49 M60 58.89 x 3.54 110 US-859154-49 M72 70.66 x 3.54 110 US-859155-49 Auxiliary steel shelf 8.5” x 11.7” x 0.8” 7 ASSA4 LCD Arms Description Size Max lbs Order No LCD holder with double arm (Vesa 75/100) 33 US-93049002P Keyboard tray for LCD holder 18.9” x 10.2” 11 860941-49 Equipment arms Description Size Max lbs Order No Equipment shelf, ESD 14.3” x 14.3” 55 93049001P Casters Description Order No Caster Set Ø 3.93” ESD (2 - locking, 2 - non-locking) 860429-00 Caster Set Ø 3.93” nonESD (2 - locking, 2 - non-locking) 834734-00 Drawer units Description Order No Single drawer unit, ESD 859340-49 Drawer attachment set for 48”W Cornerstone tables CSDB120-49 Drawer attachment set for 60”W Cornerstone tables CSDB150-49 Drawer attachment set for 72”W Cornerstone tables CSDB180-49 Drawer attachment set for Concept Manual tables 890653-49 Power rails - 15 amp Description Order No M30 power rail with 6 outlets 14-91118827 M36 power rail with 8 outlets 14-91118829 M48 power rail with 10 outlets 14-91118831 Brackets for mounting to rear case TPRBS-US1 Brackets for mounting to worksurface TPRBS-US2 Power rails include upright mounting brackets (TPRBS-US3). Alternative mounting locations require additional brackets, shown above. 18.9" x 10.2" QUICKSHIP Workstation Accessories

6 TRESTON - ERGONOMICS | ESD | LEAN Stacking bin sets Description Order No 4 Stacking bins, blue (6.5” x 4.13” x 2.95”) SBS4-1015-6 4 stacking bins, blue (2) 1525-6 (9.84"x5.87"x5.12") (2) 1520-6 (7.56"x5.87"x4.13") SBS4-2 4 ESD Stacking bins, black (6.5” x 4.13” x 2.95”) SBS4-1015-4ESD 4 ESD stacking bins, black (2) 1525-4ESD (9.84"x5.87"x5.12") (2) 1520-4ESD (7.56"x5.87"x4.13") SBS4-2ESD *Order No includes 4 bins. Cases of bins available with standard delivery time. Stacking bins on the bin rail Bin rail M30 M36 M48 M60 M72 1015 7 8 11 14 17 1520 5 6 8 10 12 1525 5 6 8 10 12 Shelf bin sets Description Order No 6 Shelf bins, blue (11.81” x 3.62” x 3.23”) SBS6-3010-6 6 Shelf bins, blue (11.81” x 5.20” x 3.94”) SBS6-3015-6 6 Shelf bins, blue (11.81” x 7.32” x 3.23”) SBS6-3020-6 6 ESD Shelf bins, black (11.81” x 3.62” x 3.23”) SBS6-3010-4ESD 6 ESD Shelf bins, black (11.81” x 7.32” x 3.23”) SBS6-3020-4ESD *Order No includes 6 bins. Cases of bins available with standard delivery time. ESD Storage Cabinets Cabinets, which combine a stylish industrial design with practical accessories to provide flexible and efficient small parts storage. Available in two cabinet sizes, 21.65” and 11.42” high. A compact storage system: one cabinet offers storage for up to 360 different items. Designed with drawer handles recessed within the frame for additional protection during transport. The cabinets can be wall mounted, placed on the worksurface, or mounted on space-saving turntables. 291-4ESD • 294-4ESD • 551-4ESD • 554-4ESD • Small Parts Storage Cabinets - ESD Order No Size (D x W x H) Drawers Divider 291-4ESD • 7.08” x 12.20” x 11.41” 24 type L-61-4ESD V-1-4ESD 294-4ESD • 7.08” x 12.20” x 11.41” 12 type L-64-4ESD V-4-4ESD 551-4ESD • 7.08” x 12.20” x 21.65” 48 type L-61-4ESD V-1-4ESD 554-4ESD • 7.08” x 12.20” x 21.65” 24 type L-64-4ESD V-4-4ESD *Dividers sold separately. Bins and Storage QUICKSHIP Bins and Storage

7 TRESTON - ERGONOMICS | ESD | LEAN Hook sets for Treston perforated panels Description Order No Hook set 1 - 20 assorted hooks, basic light hook set 855001-51 Hook set 2 - 45 assorted hooks, basic hook set ideal for hand tools 855002-51 Tool Storage System Name W x D x H inches Order No Tool storage system, 4 panels 40.35 x 40.74 x 83.66 830518-07P Additional panel .59 x 37.36 x 77.79 830682-07P SEE IT IN ACTION! Visit our website to view the demonstration video. www.treston.us/TKT Hook Set 1 Hook Set 2 The original Treston tool storage system requires only 21.5 sq. ft. of floor space and provides 172 sq. ft. of storage space. There is no need to attach it to the floor, as it stands firmly on its own. There is a caster on the lower edge of the panels which makes them easy to move. The load capacity is 220 lbs/panel. A maximum of 10 panels can be attached to the tool storage system. Tool Storage System QUICKSHIP Tool Storage System

8 TRESTON - ERGONOMICS | ESD | LEAN Carts Treston Multi Carts Description Size Max lbs Order No Multi Cart High M30, 2 perforated panels, 2 bin rails, 1 adjustable shelf 31.1” x 29.9” x 70.5” 660 14-TMTH7-202-07 Multi Cart High M36, 2 perforated panels, 2 bin rails, 1 adjustable shelf 37.1” x 29.9” x 70.5” 660 14-TMTH9-202-07 Multi Cart High M30, perforated panels 31.1” x 29.9” x 70.5” 660 TMTH7-005-07 Multi Cart High M36, perforated panels 37.1” x 29.9” x 70.5” 660 TMTH9-005-07 Multi Cart High M30, 4 adjustable shelves ESD 31.1” x 29.9” x 70.5” 660 TMTH7-002-49 Multi Cart High M36, 4 adjustable shelves ESD 37.1” x 29.9” x 70.5” 660 TMTH9-002-49 Multi Cart Low M30, 2 adjustable shelves ESD 31.1” x 29.9” x 45.3” 660 TMTL7-002-49 Multi Cart Low M36, 2 adjustable shelves ESD 37.1” x 29.9” x 45.3” 660 TMTL9-002-49 Multi Cart High M30, 4 adjustable shelves 31.1” x 29.9” x 70.5” 660 TMTH7-002-41 Multi Cart High M36, 4 adjustable shelves 37.1” x 29.9” x 70.5” 660 TMTH9-002-41 Multi Cart Low M30, 2 adjustable shelves 31.1” x 29.9” x 45.3” 660 TMTL7-002-41 Multi Cart Low M36, 2 adjustable shelves 37.1” x 29.9” x 45.3” 660 TMTL9-002-41 Optional bottom shelf 30”W 28” x 28.7” x 1.3” 220 TMTLS7-49 Optional bottom shelf 36”W 34” x 28.7” x 1.3” 220 TMTLS9-49 Work is not always confined to a single workstation and tools must be moved around accordingly. Lightweight carts are ideal for this situation, significantly increasing productivity up to 30%. The carts provide extra work or storage space and can be used, for example, to transport various items, to store measuring units and keep a buffer stock on a production line. Each task is different and requires dedicated tools. Due to their modularity and versatile accessory components, carts are easy to design and adapt to suit a multitude of users and applications. QUICKSHIP Carts

9 TRESTON - ERGONOMICS | ESD | LEAN Concept cart provides extra workspace for Concept and Cornerstone workbenches. Lower shelf is integrated. Can be equipped with an additional shelf or drawer unit 30 series. Height adjustment with allen key between 25.6”-35.4”. Concept Cart Name W x D x H inches Order No Concept Cart 19.7” x 27.6” x 25.6”-35.4” 830518-07P Concept Cart, ESD 19.7” x 27.6” x 25.6”-35.4” CONT705-49 Extra shelf 15.7” x 19.7” CONTS504-49 QUICKSHIP Carts

10 TRESTON - ERGONOMICS | ESD | LEAN 04/2023. Copyright © 2023 Treston Inc. All rights reserved. Specifications are subject to change without prior notice. Are you looking for high-quality workspace products, shipped FAST? Treston QuickShip is the solution! CONTACT US TODAY! USA HEADQUARTERS Treston Inc • 156 Bluffs Court, Canton, GA 30114 Tel. 800.437.6772 • infousa@treston.com • treston.us QuickShip only available for item numbers listed in this brochure. Shipping method must be specified at the time of order. QuickShip products are ready to ship in five days. Treston is not responsible for delayed pickups by freight company. Ship time may vary for large orders over 10 benches. Freight is FOB shipping point, Canton, GA. Freight will be pre-paid and added to the invoice or freight collect according to your written instructions. We will coordinate shipments with your representatives. If the job site is not ready to accept shipments at the time scheduled, we will not be responsible for moving material in or out of storage or other job site locations and any costs incurred. ”FOB shipping point” indicates the buyer pays shipping cost to the end user, and takes responsibility for the goods when the goods leave the Treston’s premises or the premises of the Treston subcontractor when drop shipping direct from the Treston subcontractor to the end user. All material is shipped knocked-down unless otherwise noted. Assembly and installation is not included. Receipt of goods must be inspected and inventoried. Any shortage must be reported in writing within 48 hours. Treston’s freight terms are FOB Canton, GA. Any freight damage should be noted on the freight bill at the time of receipt. Claims should be reported to the freight company directly as soon as possible. Treston will assist in the claims process but cannot file the claims. Return policy; All returned goods require a RMA number (Return Merchandise Authorization) issued by Treston, Inc. prior to the return of any goods. All Requests for return authorization must be within 60 days of original invoice. All returns should be packaged so that it is returned in re-sellable condition; returned freight prepaid. Upon receipt and inspection of product, Treston, inc. will issue an 80% credit against applicable invoice if product is deemed re-sellable. Custom or non-standard products may not be returned. Authorization of partial shipments requires written approval from the distributor and acceptance by Treston, Inc. Terms are NET 30 days from the date of invoice. Warranty: Steel construction and weldments, (5) five years from date of shipment. Mechanical cranks, fixtures and devices, (1) one year from date of shipment. Electrical motors, fixtures, and devices, (1) one year from date of shipment. All in accordance with established Treston warranty statements. All products are Treston gray (RAL 7035) in color unless otherwise noted. All items noted with ESD properties are guaranteed to meet ESD requirements specified in the IEC-61340-5-1 standard. Connection, grounding, any local requirements and verification of same is the responsibility of the end user. Treston will not accept any contract or agreement that contains any penalties or liquidated or actual damages. All orders are subject to credit approval by Treston, Inc. Packaging Treston takes pride in protecting our shipments from damage. Shipments are carefully packed to ensure shipments are received damage-free. Upon shipping, ”DO NOT STACK” cones are placed on top of the boxes. A photograph of the shipment is placed on the outside of the package to display the state of the shipment as it is shipped. The photograph provides photo proof to the receiver as to the state of the shipment upon departure from origin. Terms and Conditions QUICKSHIP Terms and Conditions
